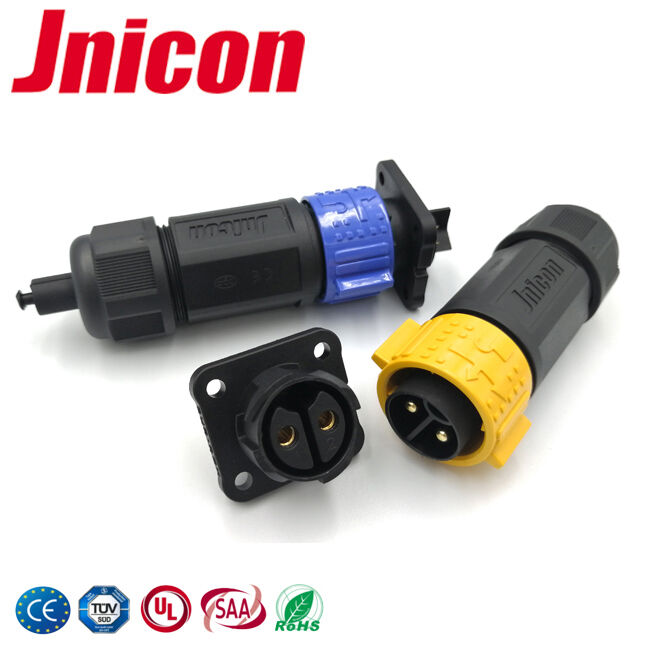

IP67 Electrical 2 Pin 50 Amp Waterproof Panel Mount Connector Plug And Socket
Main features of 2 Pin 50Amp Waterproof panel mount Connector IP67:
• M25 series 2 to 22 pins are available and for varies industrial demands. male ,female and socket are available.
• the current is high, can reach to 50Amps. it can used in automotion and new energy.
• the contact diameter is ∅3.5mm/pin.
• High current application safety and stable wire. 10AWG wire for 2 pin M25 series push Locking waterproof panel mount connector.
• Operate temperature range: -45°C~+85°C.
• waterproof plug connector have IP67 waterproof protection level, and it can used in door, outdoor.
• the current/ voltage of waterproof male female connector are 50A/500V. the withstanding voltage is 2500V AC.
The specifiction of pins waterproof plug connector
| SPECIFICATION |
| Designation |
2 pin waterproof panel mount connector plug socket |
| Model No. |
51-100211-01 |
| Item |
Specification |
| 1. Electrical characteristics |
| 1B |
Insulation Resistance |
10MΩ min. |
| 1C |
Withstand Voltage |
2500V AC There shall be no breakdown. |
| 1D |
Rating |
50 A/ 500V |
| 2. Mechanical |
| 2A |
Mating/Unmating force |
Mating & Unmating Force: 10~30N |
| 2B |
Life test |
Mating & Unmating 500 cycles |
Application
► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
► M25 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.
Material and operation temperature:
| Material |
| A |
Contact Plating |
1u" gold plating |
| B |
Contact material |
Brass (C3604) |
| C |
Housing material |
PA66 |
| Environmental |
| A |
Flammability |
|
UL 94V-0 |
| B |
Operation temperature range: |
-30℃~+80℃ |
| C |
Preservative temperature range: |
-40℃~+85℃ |
More detail:
• Vibration resistance,impact resistance,stretching resistance.
• OEM/ODM are accepted. cable length can customized.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
Product detail picture
Packing and Delivering
- Packaging Details: 50pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 1000 pcs each model .
- Delivery Details: sample about 3 working days, products in 7 days after payment.
- Weight ＜100 KG , we usually transport the good by air express .
- If you have shipping agent please tell me , then we can send it to him / her.
