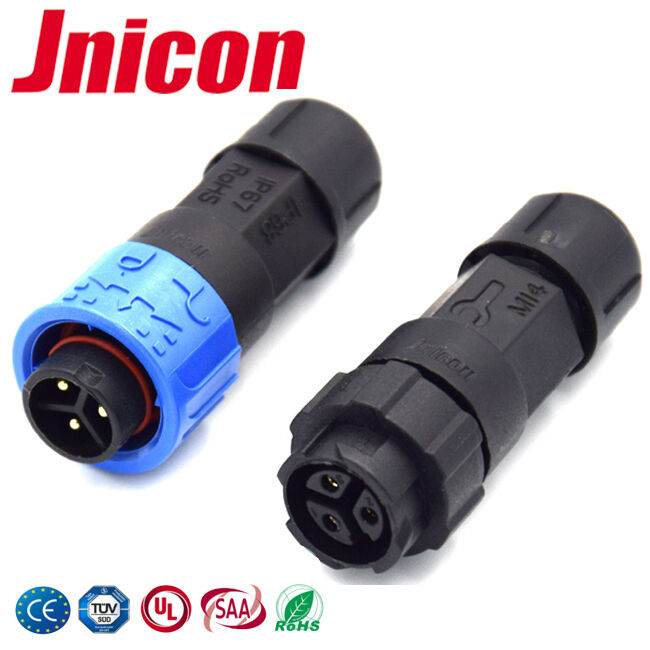

Jnicon 3 Pin LED Waterproof Plug Socket 10A Push Locking Panel Mount Connector
Description of 3 Pin panel mount Waterproof plug with socket connector:
• waterproof plug socket connector of current/ voltage are 10 A/ 300V.
• The waterproof rating is IP67
• multi-pins are available (2-8 pins) and for varies industrial demands.
• Screw locking style and push locking,easy to assemble.
• High current application safety and stable wire.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Specifiction of 3 pin waterproof plug socket connector
| 3 pin waterproof plug socket connector |
| Connecting mode |
push Lock connect |
| Protection level |
IP67 |
| Contact diameter×Qty |
Φ1.5×3 |
| Current rating(A) |
10 A |
| Operating voltage |
300 V |
| Temperature rating |
-40°C~105°C |
| Method of connecting cable |
Solder |
| Prevent the combustion level |
UL94-V0 |
| Material |
| Shell&insulated parts |
High performance engineering plastics |
| Contact pin |
Copper alloy(gold-plated) |
| Spring |
Stainless steel |
| Main characteristics |
| Sealed against dust and fluid (IP68/IP67) |
| Vibration resistance,impact resistance,stretching resistance |
Application:
Waterproof plug socket connectors could be widely used in indoor & outdoor led lighting, LED screen, audio visual equipment, industrial and testing equipment, electricl power connection, landscape lights,underwater lights,equipments etc.
Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
